Support RK3566 RK3568 GC2053 MIPI Camera Module With 1080P 30fps Low Power CMOS Sensor

GC2053 2MP MIPI CSI-2 Camera Module:

TYS-2053-MIPI-V01 MIPI camera module use the 2MP high-quality Rolling shutter GC2053 1920H*1080V pixel array CMOS image sensor from Galaxycore,1/2.9 inch with 1080P Frame Rate 30fps.on-chip 10-bit ADC,and image signal processor.It can provide clear image quality to meet most daily capturing and monitoring needs.

Support customized Full HD 1080P MIPI CSI-2 camera module with GC2053 2-megapixel CMOS color image sensor.Small size makes it easy to integrate into various compact devices such as smartphones and tablets, providing more flexibility in device design.

Specification:

Technical & Mechanical:

• Power Supply: AVDD: 2.8V

  DVDD: 1.2V

  IOVDD: 1.8V




• Power Consumption: 98mw

• Stable image: 0°C to +60°C
• Operating Temperature: -20°C to +80°C
• Storage Temperature: -40°C to +125°C

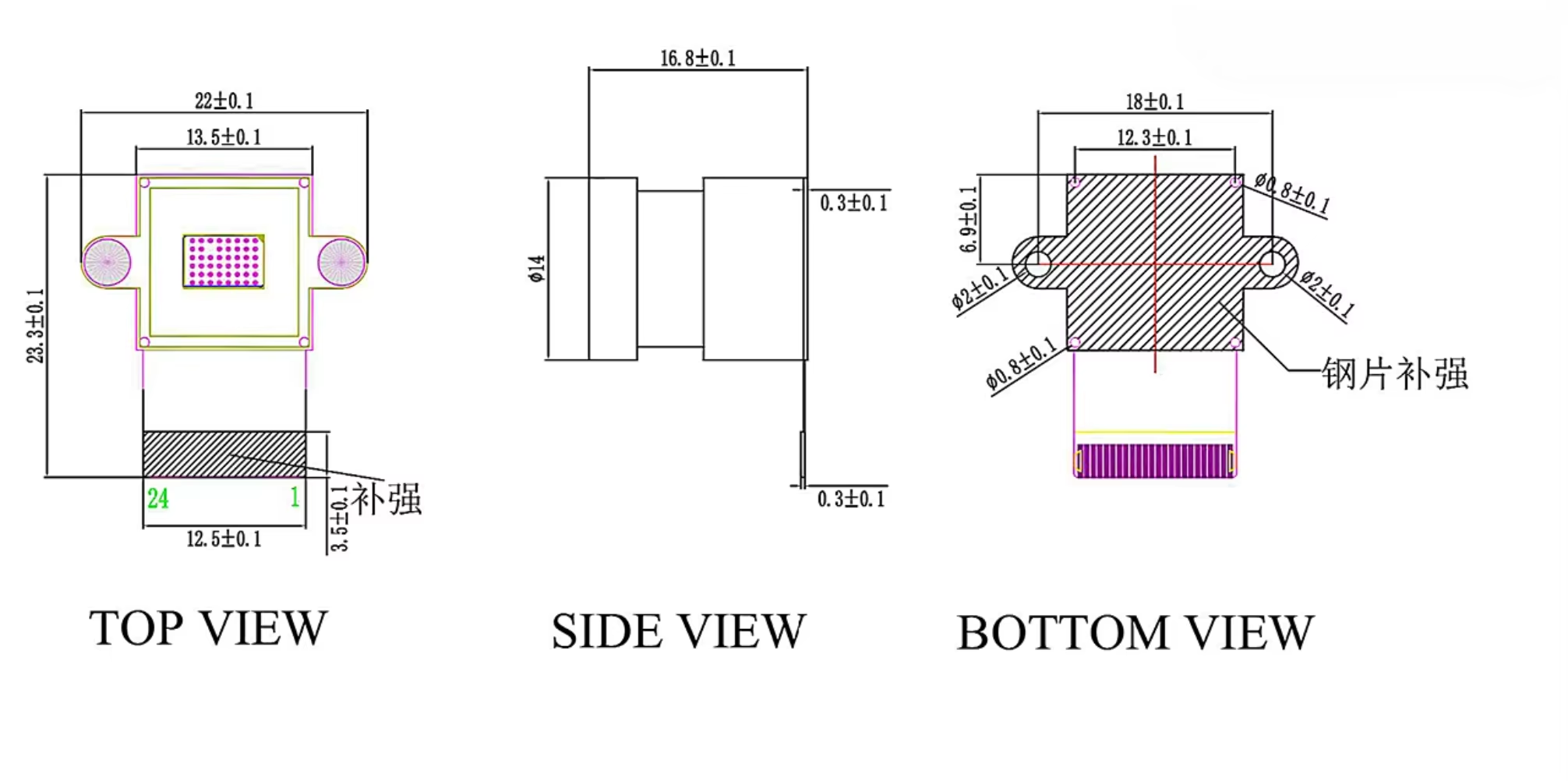

• Module Size : 22mm*23.3mm*16.8mm
• 2x2 binning mode
• Horizontal/Vertical mirror
• PLL support
• OTP support

Full HD GC2053 1080P MIPI camera module applications:

GC2053 Full HD 1920*1080 30fps FF MIPI CSI-2 camera module for security gates, access control and attendance devices, etc., achieve identity recognition and access control by capturing facial images.

Hot selling 2 million 1080P 30fps low-power consumption no distortion lens camera module with MIPI interface used for smart refrigerators, smart door locks, etc., achieve visual functions, such as viewing the situation outside the door through the camera of the smart door lock. It can also be used for smart home monitoring systems, where users can remotely view their home situation through their mobile phones, making life more convenient and secure.

MIPI driving recorder camera module with Full HD 2MP 1920*1080 FF CMOS image sensor. It can record the driving process and provide evidence for traffic accidents. It can also be used for in car rearview and surround view systems to help drivers better observe the surroundings of the vehicle. It can also be applied to ADAS (Advanced Driver Assistance Systems) and DMS (Driver Monitoring Systems) to enhance driving safety.

1/2.9 inch 2-megapixel 1920*1080 full HD distortion free robots MIPI camera module. It can recognize human facial expressions, gestures, etc., understand human intentions and instructions, and achieve more natural and convenient human-computer interaction. For example, home service robots can perform corresponding tasks by recognizing the owner's gestures, or provide personalized services by recognizing the owner's facial expressions.

Stock avaliable 2MP GC2053 1080P 30fps MIPI camera module used in the field of smart homes, Intelligent security monitoring,visual intercom doorbell,human-computer interaction,environment and item recognition and visual input devices for smart home systems.Implement home automation management to improve living comfort and energy efficiency.

RK3566 MIPI camera module 1080P

RK3568 low power CMOS sensor

GC2053 IR camera module 30fps

RK3566 RK3568 GC2053 MIPI Camera Module 1080P 30fps Low Power Cmos IR Sensor Images
